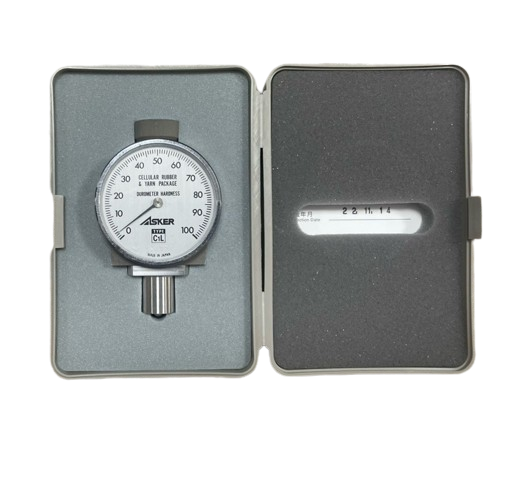

Đồng hồ đo độ cứng cao su và nhựa Asker Durometer type C1L
Hãng: Asker
Model: Durometer type C1L
Xuất xứ: Nhật Bản
Thông số kĩ thuật
ASKER Durometer Type C1L |
 |
 |
The ASKER Durometer Type C, produced since 1956, is our original brand durometer, and is a de facto standard in the world for the measurement of soft rubber, sponges, etc.
Widely used for measuring soft rubber, sponges, and other foam elastomers, as well as rolled-threads, -films and textile windings (yarn packages). | |
 |
 | Features | |
 |
Indentor |
 | Height: 2.54mm Shape: Spherical | |
 |
Hardness Tester Selection Chart |  |  | Our product line consists of various types of durometers applicable to specific materials as indicated in the chart above.
Type A Durometer (ASKER A type), conforming to JIS K 6235 is the most popular type of durometer for measuring rubber hardness.
However, verification is recommended because a significant difference is estimated to be the largest when a durometer indicates measurement values from 10 to 90 points.
For hard specimens for which Type A Durometer readings indicate more than 90 points, measurements should be undertaken using the Type D Durometer (ASKER D type). However, for soft specimens with measurements of less than 20 points, the ASKER C type or Type E Durometer (ASKER E type) should be used. The most important consideration in using durometers is to select the correct type for purposes of measurement according to the specimen.
| |
 | Specification | |
 |
 | Standards |  | JIS K 7312 JIS S 6050 | |  | Indication range |  | 0 point - 100 point (262 degree dial scale) | |  | Minimum indication |  | 1 point (Accuracy : ±1 point) | |  | Indentor Design (mm) |  | Height: 2.54 5.08 Dia. Spherical | |  | Spring Forces [mN(g)] |  | | |  | Central hole of diameter of Pressure foot |  | Φ5.5 | |  | Pressure foot Dimension (mm) |  | f16 Longer foot type Length: 18 | |  | Outer Dimension (mm) |  | Approx. Width 57×Depth 30×Height 94 | |  | Weight (g) |  | 200 | |  | Application |  | soft rubber, urethane foam, sponge, rolled-threads, film rolls and pottery clay, footwear | |  |
|
 | Outer Dimension (mm) | |
 |  | A custom designed pressure foot durometer is available according to specimen conditions.
| |
